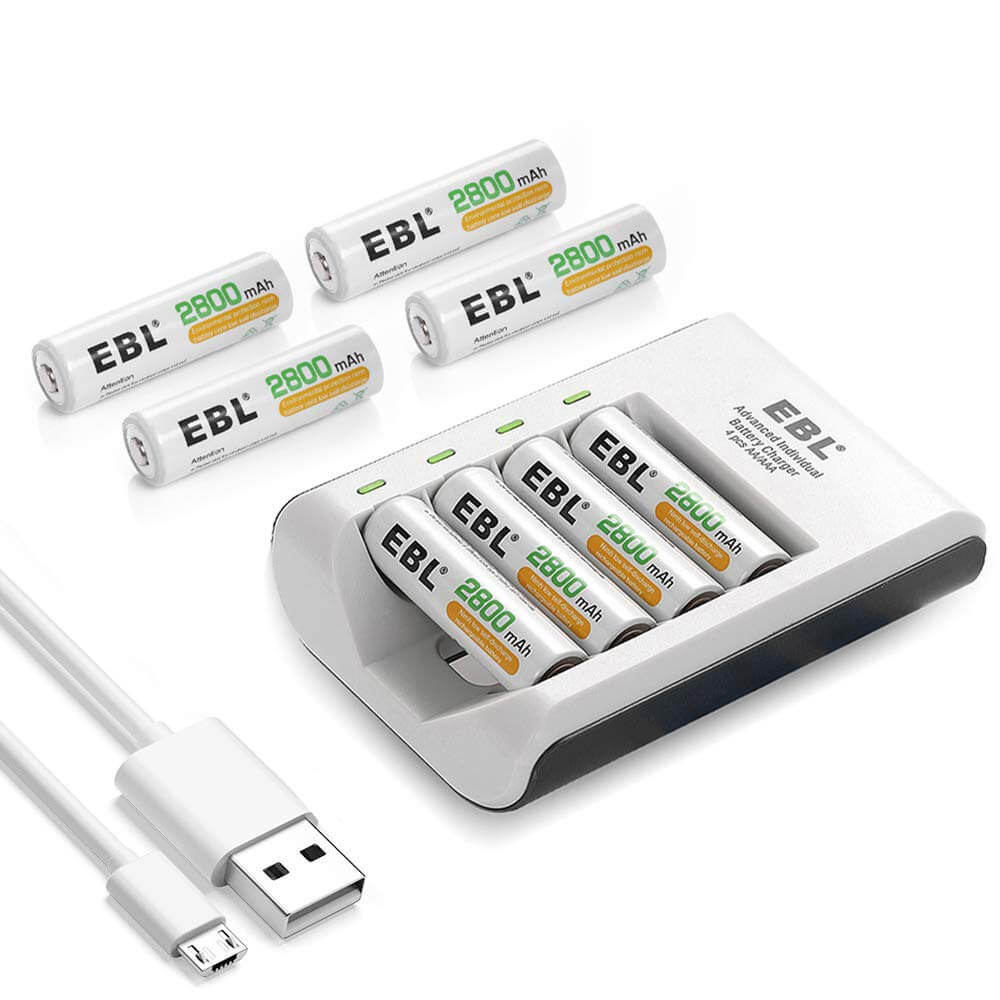

EBL® 4 Slot Individual AA AAA Ni-MH Ni-CD Rechargeable Battery Charger Adapter

4 Slot Individual AA AAA Ni-MH Ni-CD Rechargeable Battery Charger Adapter

Short Circuit & Input Voltage Detection/Protection

Individual charging status for each slot, can charge battery singly or in pairs

4 LEDs show the charging process.the LEDs display RED when put batteries into the charger;the LED light become weaker and weaker along with the charging process ;automatically switches to trickle charge when charging is complete to ensure maximum battery capacity

Very safe products,good at shedding heat,automatically stop charging when voltage up to 3.4V

Specification of charger

Input: AC 100-240V AC 50/60Hz

Output: 1.2V DC 800mA

No Load Power Consumption:1W MAX

Full Load power consumption:5W MAX

Compatible with

Can both charge AA/AAA Ni-MH/Ni-Cd rechargeable battery (Do not charge alkaline or Lithium batteries).

How many batteries can be charged at a time:

The charger is designed very portable and lightweight, perfectly charge for 1/2/3/4pcs AA/AAA Ni-MH/Ni-Cd batteries.

Advaned MCU Control With Reasonable Circuit Layout

Negative delta V (- ∆V) cut-off function,automatically cut off when fully charged

Input and Output:

Input: DC 1.0A Worldwide voltage

Output: DC 2.8V 1000mA,0.4V output voltage more than most similar charger means faster for charging

Charging Time Table:

1 to 4pcs AAA 500-1200mAh: 1.5 - 4 hours(180mA output)

1 to 4pcs AA 1300-2800mAh: 1.5 - 6 hours(200mA output)

Portable and Lightweight:

Dimensions: 175 x 7.7 x 2.6 (cm)

Weight : 170(g)

Unique Trickle Charge

Adopting -∆V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection and reverse polarity protection.

Package:

1 x EBL battery charger

1 x Micro USB  charging cable

1 x user manual

Note: AA or AAA Battery not included.
